Authorization Management

Manage authorizations for a variety of resources (e.g., Applications, Groups, Filters). In the following sections you will learn how to use an administrator account with the help of some simple use cases. See Authorization Service for more information about Authorizations.

​

Grant Basic Permissions

In this use case we’ll grant some basic permissions. To start out we’ll need some users and a group. Create two users in the users menu, create a group called support in the groups menu and add the new users to the group in the users menu.

​

Application Access

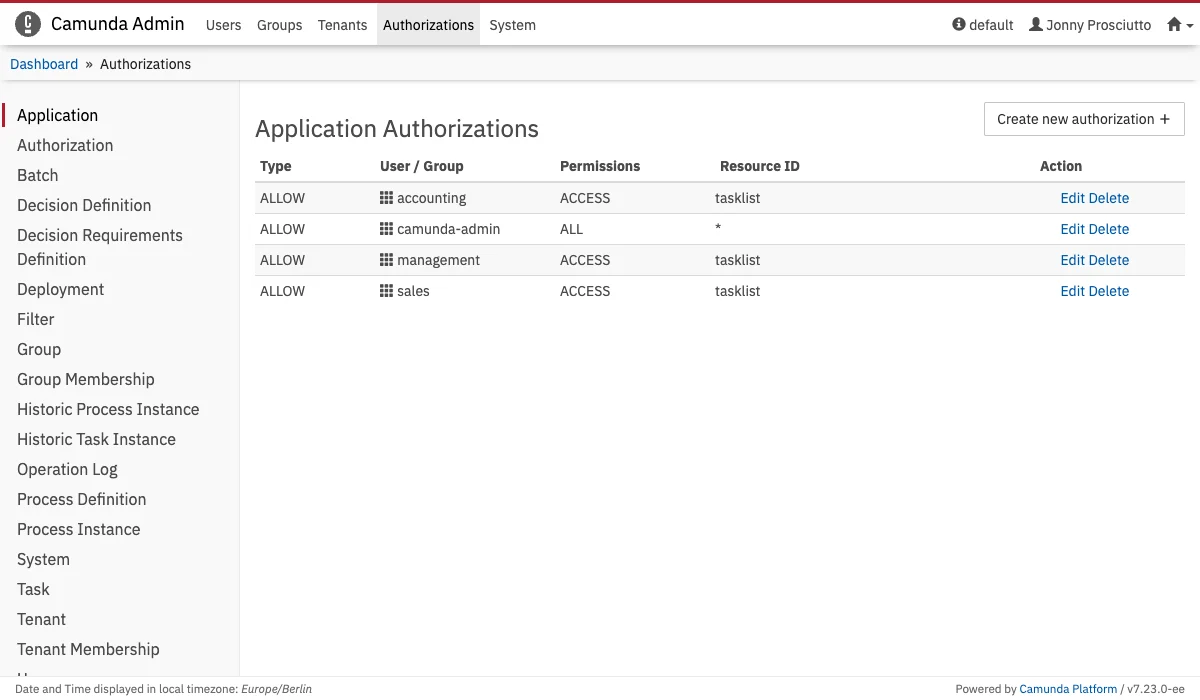

Set the authorizations for the new group and the created users. First you have to define which application the members of your new group have access to. Select the Application menu and create a new Application Authorization rule. The group members should be able to access Tasklist, so add the following rule: Now every member of the group support can use Tasklist. Furthermore, you want one of the new users to get access to Cockpit. Therefore, add a new user-specific rule: This specific rule is only valid for the user ‘lemmy’ and provides him with additional authorization for the resource Cockpit. Log in with the new user accounts and test if you can access the desired application.

​

Filter Access

Currently the users in the support group can only see the predefined filters in Tasklist. We want the group members to have READ access to another filter, so we create a rule for that filter: The authorizations set here correspond to the authorizations that can be set in the filter settings in Tasklist. The resource ID can be found in the database table ACT_RU_FILTER. See this section for more information about filters.

​

Member Visibility

Depending on the users authorization, Tasklist will show you information about your colleagues and groups. Currently you can only see the group folder support but not your colleague. To change that, log in to the admin application as administrator, enter the Users Authorization menu and create the following rules: Now every member of the group support is able to see the new users lemmy and Ozzy.

​

Application-Specific Permissions

This use case demonstrates how to give a group access to Cockpit, but restrict them to READ access. We will use the support group that we created in the previous example. To limit the access we have to know which resources are accessible in Cockpit so that we can set the proper permissions for them. Of the predefined resources at the moment this would be:

• Process Definition
• Process Instance
• Task

First of all, we have to provide the permission to access Cockpit (also see the Application Access section). For all the resources that are accessible from Cockpit we add READ permission for every resource id (indicated by the asterisk) for the group, e.g., in the screenshot for all process definitions. Now every user of the support group can access Cockpit and see everything that is inside without being able to change anything (unless the user has special permissions himself, because those take precedence over group permissions). Now that we have one group that can see everything in Cockpit, we want to have another group managing one single process.

​

Restrict Process Permissions

Not every process has to be managed by every user/group and with regards to different organizational levels, not every group should be aware of every process present in the process engine. Therefore it might be necessary to restrict the access of users/groups to certain processes. In this use case we want to give the group accounting, which we will assume is already present and has access to Cockpit (see Application-Specific Permission and Application Access), full access to the “invoice” process and only to this process. For groups and users to be able to see process definitions they need at least READ permission for the “Process Definition” resource. To see running process instances the same permission is required for the “Process Instance” resource. We grant the accounting group all permissions for the invoice process because they shall be able to manage their process completely. The resource id references the key of the process definition. Now that we know how to grant certain permissions, we might need a second user who serves as an administrator.

​

Create a User with All Permissions

During the setup you had to create one administrator account. In a real-world scenario it could be beneficial to have a second administrator account to manage the users. Basically, an administrator is a user with the ALL permission for every possible resource and resource id. For example, to grant the accounting group all permissions for authorizations the following entry has to be made: To create an administrator account, there are several options:

1. If you kept the group camunda-admin in your application, you can add the user to this group.
2. If you use the Administrator Authorization Plugin, you can configure the plugin to grant the user or a certain group all permissions.
3. You can create your own administrator group (also see Groups), grant it all permissions and assign a user to it.
4. Grant one specific user all permissions.

Now, after creating a new administrator account, we may want to start working and start processes.

​

Grant Permission to Start Processes from Tasklist

Processes are started from Tasklist. For a user or group to be able to start processes we need, again, a certain combination of permissions. In this use case we want to give the accounting group the permission to start the invoice process from Tasklist. To start, we will grant the group access to Tasklist (also see Application Specific Permission. Next, we grant the accounting group the READ and CREATE_INSTANCE permission for the invoice process to be able to see the process definition and create instances in Tasklist. After that, we grant the CREATE permission for process instances. The CREATE permission is necessary for the group to be able to create new process instances. The resource id references the generated process instance ids, therefore we use the asterisk, because we can’t know the generated id in advance. Now that we know how to start a process, we may want to restrict permissions to certain running processes.

​

Grant Permission for Single Process Instance

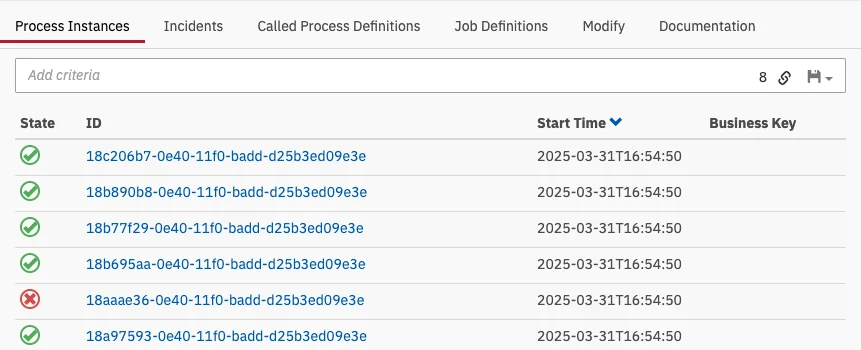

It is possible to restrict a group’s/user’s permissions to a single process instance, i.e., after the process ends, the group/user will not be able to change any other running process instances. We will use the accounting group again in this example. We assume that the group has access to Cockpit (also see Application Access) and that a process with the name and key OrderProcess is present. To enable the group to see the process in Cockpit, we have to grant the READ permission for the process definition. Now we have to get the process instance id from Cockpit. You can find the ids of all running processes after clicking on a process definition name or diagram preview on the Cockpit dashboard. This id then has to be used as the resource id when granting the user all permissions for the Process Instance resource. This will limit the group’s permissions to this running process instance. As with restricting access to a certain process instance, it is also possible to apply similar limitations for a single task.

​

Grant Permission for Single Tasks

Since several groups can participate in a process, it could be useful to restrict certain tasks to certain people/groups. For this example, we will reuse the accounting group and the invoice process from the previous sections. At least we need one running instance of the process. First of all, we have to grant the accounting group READ permission for filters so that tasks will be displayed in Tasklist. Next we go into Cockpit and assign the desired task to the accounting group. This will automatically create an entry for the task with the task id as resource id in Admin and grant the READ and UPDATE permissions. Those are the most common use cases for possible combinations of resources, permissions and resource ids.
