Evaluate, Deploy, and Test the Decision Table

Evaluate the decision table

To assess a decision table immediately after deployment, add this method to your application class:

package org.camunda.bpm.getstarted.dmn;

@ProcessApplication("Dinner App DMN")
public class DinnerApplication extends ServletProcessApplication {

  protected final static Logger LOGGER = Logger.getLogger(DinnerApplication.class.getName());

  @PostDeploy
  public void evaluateDecisionTable(ProcessEngine processEngine) {

    DecisionService decisionService = processEngine.getDecisionService();

    VariableMap variables = Variables.createVariables()
      .putValue("season", "Spring")
      .putValue("guestCount", 10);

    DmnDecisionTableResult dishDecisionResult = decisionService.evaluateDecisionTableByKey("dish", variables);
    String desiredDish = dishDecisionResult.getSingleEntry();

    LOGGER.log(Level.INFO, "\n\nDesired dish: {0}\n\n", desiredDish);
  }

}

Catch up: get the sources of Step-4

git clone https://github.com/aseeflow/aseeflow-get-started-dmn.git
git checkout -f Step-4

Or download as a .zip.

Build the web application with Maven

In the Package Explorer, select pom.xml, right-click, and choose Run As > Maven Install. This generates a WAR file called dinner-dmn-0.1.0-SNAPSHOT.war in the target/ directory.

If the WAR file doesn’t appear after the Maven build, refresh the project in your IDE.

Deploy to Apache Tomcat

Copy the dinner-dmn-0.1.0-SNAPSHOT.war file from your Maven project to $ASEEFLOW_HOME/server/apache-tomcat/webapps. Examine the Apache Tomcat server logs. Successful deployment is indicated by:

INFO org.camunda.commons.logging.BaseLogger.logInfo
ENGINE-07015 Detected @ProcessApplication class 'org.camunda.bpm.getstarted.dish.DishApplication'
INFO org.camunda.commons.logging.BaseLogger.logInfo
ENGINE-08024 Found processes.xml file at ../webapps/dinner-dmn-0.1.0-SNAPSHOT/WEB-INF/classes/META-INF/processes.xml
INFO org.camunda.commons.logging.BaseLogger.logInfo
ENGINE-08023 Deployment summary for process archive 'dinner-dmn':

        dinnerDecisions.dmn

INFO org.camunda.bpm.getstarted.dmn.DinnerApplication.evaluateDecisionTable

Desired dish: Stew

INFO org.camunda.commons.logging.BaseLogger.logInfo
ENGINE-08050 Process application Dinner App DMN successfully deployed

Verify the deployment with Cockpit

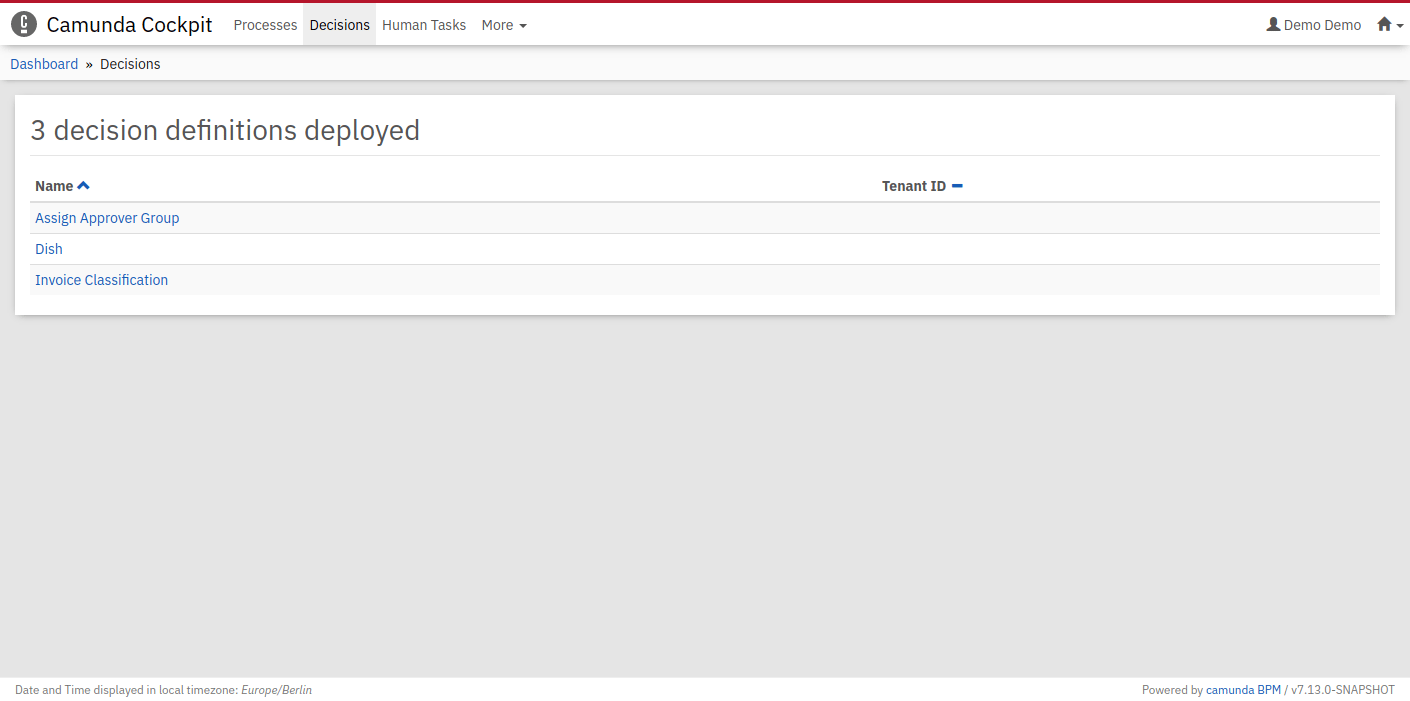

Access Cockpit at http://localhost:8080/camunda/app/cockpit. Log in with demo / demo. Navigate to the Decisions section, where your Dish decision table should appear as a deployed decision definition.

Verify the evaluation with Cockpit

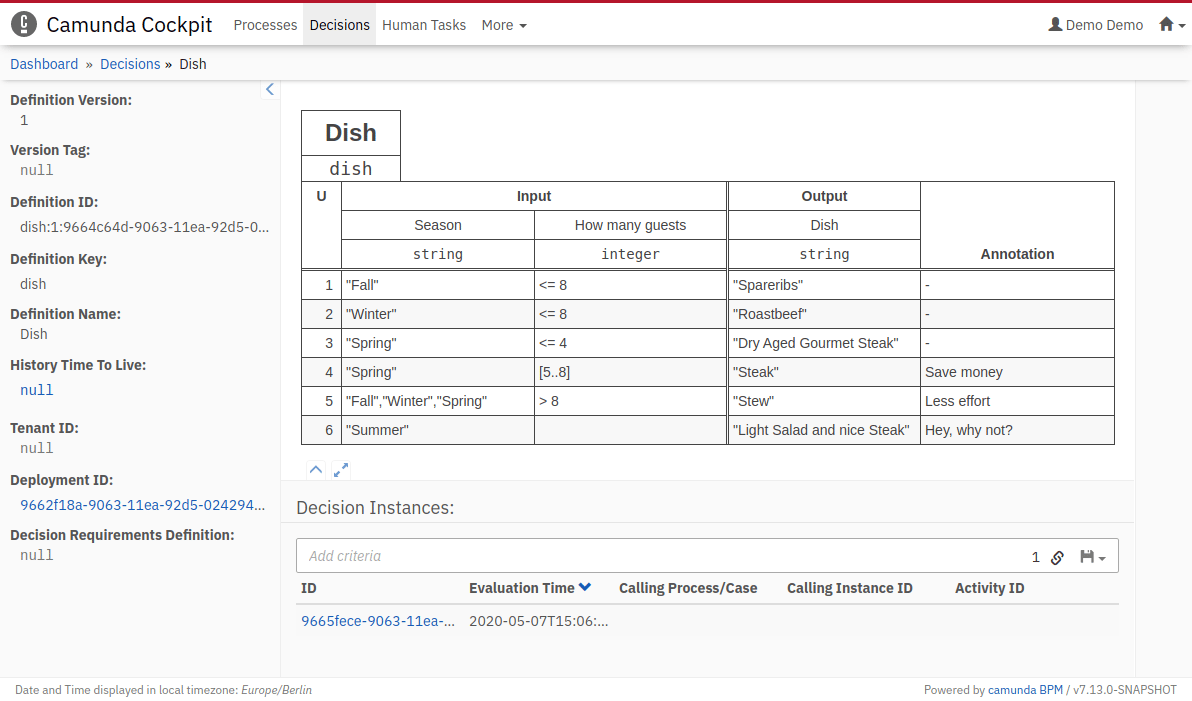

Select the Dish decision to open a dialog displaying when the decision table was evaluated.

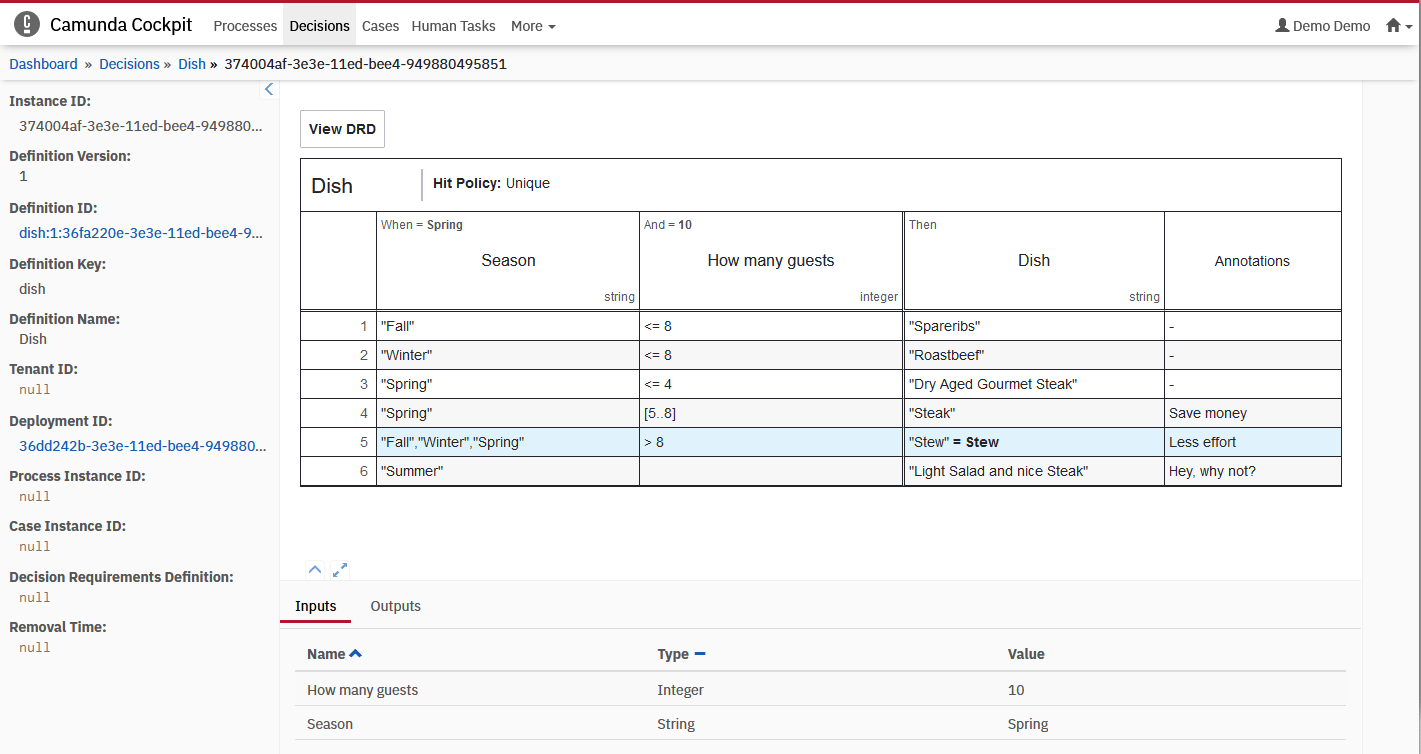

Clicking the ID reveals the evaluation’s historical data. Matched rules are highlighted, with input and output values presented in a table.

Confirm that the 5th rule matched and Stew appears as the desired dish output value.

Next steps

You’ve successfully established a project featuring your first DMN decision table. Consider these follow-up activities:

Review decision evaluation using the REST API
Deepen your DMN knowledge through the DMN Reference
Explore the Decision API of the process engine
Discover how to trigger decisions from a BPMN business rule task
Bonus: learn about the Decision Requirements Graph
